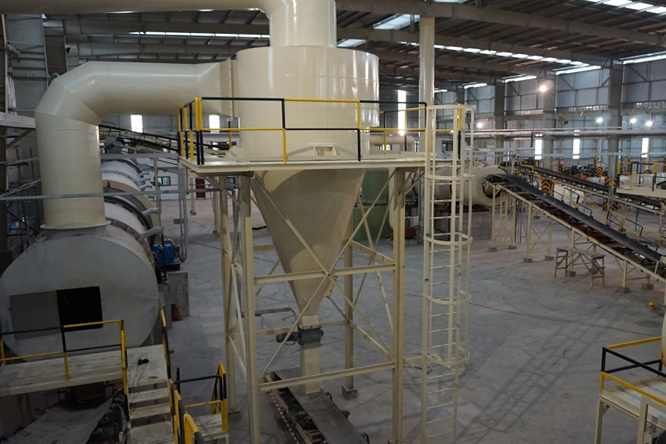

Cyclone Dust Collector
The cyclone dust collector is a dry dust removal equipment that achieves gas-solid separation through centrifugal force. With its simple and reliable design, wide applicability and economic efficiency, it has become one of the basic equipment in the industrial dust removal field
The cyclone dust collector is a dry-type gas-solid separation device that separates dust particles from the dusty gas flow by utilizing centrifugal force. Its core working principle is as follows: The dusty gas flow enters the cylindrical container tangentially from the cyclone, forming a high-speed rotating vortex inside the cylinder. Due to the difference in mass between dust particles and gas, under the action of centrifugal force, the dust particles are thrown towards the cylinder wall and fall along the wall under the influence of gravity, eventually entering the ash hopper at the bottom for collection; while the purified gas is discharged from the exhaust pipe at the center of the cylinder, achieving gas-solid separation. This equipment mainly consists of an inlet pipe, a cylindrical container, a conical part, an exhaust pipe, and an ash hopper.
Characteristics of the cyclone dust collector
Dust removal efficiency: 60-75%
Processing air volume: 17,000-105,000 cubic meters per hour
Advantages: Simple structure, low cost; easy maintenance; large processing air volume; high dust removal efficiency; wide application range.
Limitations: Cannot remove fine particles; improper operation may cause wear; high resistance; limited ability to handle complex dust; large floor area.
Applications of the cyclone dust collector
The cyclone dust collector is a purification device that separates dust particles from dusty gas by utilizing centrifugal force. With its simple structure, low cost, and easy maintenance, it has been widely used in various fields.
1. In the industrial production field, its presence can be seen everywhere. For example, in the mechanical processing industry, metal cutting processes generate a large amount of metal dust, and the cyclone dust collector can effectively collect this dust, not only avoiding the hazard to operators’ health caused by the dust but also recovering some reusable metal debris. In the building materials industry, cement, lime, ceramics, etc. production processes release a large amount of dust, and the cyclone dust collector can be used for dust purification in these production processes, reducing pollution to the surrounding environment. In the chemical industry, some dust generated during the crushing, screening processes of raw materials can also be treated by the cyclone dust collector to ensure a clean production environment.
Benefits: Reducing environmental pollution.
2. In the energy production field, the cyclone dust collector also plays an important role. In coal-fired power plants, coal combustion generates a large amount of fly ash, and the cyclone dust collector can be used as a primary dust removal device to separate a large amount of fly ash from the flue gas, reducing the burden on subsequent dust removal equipment. In biomass energy generation, the dust generated from the combustion of biomass fuel can also be purified and treated by the cyclone dust collector.
Benefits: Reducing the burden of subsequent work.
3. In the environmental protection field, the cyclone dust collector is often used for the treatment of small pollution sources. For example, the dusty exhaust gas emitted from some small boilers and industrial kilns can be treated by the cyclone dust collector to meet environmental protection emission standards and reduce pollution to the atmospheric environment. In garbage treatment plants, the dust generated from garbage incineration or storage can also be collected and treated by the cyclone dust collector to improve the air quality in the surrounding area.
Benefits: Reducing environmental pollution.
4. The limitations of the cyclone dust collector are that its dust removal efficiency is low for particles with smaller diameters (usually less than 5 μm). Therefore, in occasions where higher dust removal efficiency is required, it is often combined with other dust removal devices (such as bag-type dust collectors, electrostatic dust collectors, etc.) to achieve better dust removal effects.
Benefits: Better combined dust removal effect
